Popover

A popover is a dialog anchored to a control of the screen: it opens next to that control (below it by default, or above it, at its left or at its right), with a header, a body and an optional footer. Use it for short content linked to a control (a quick edit, a few options, notes) without covering the screen. It is opened and closed exactly like a dialog: with a button-action of type dialog (see button actions), and with the close and close-cancel actions. Both web engines (AngularJS and React) support it.

---

XML skeleton

<popover id="[popover-identifier]" label="[popover-label]" icon="[popover-icon]" style="[popover-style]"
         anchor="[control-identifier]" position="[bottom|top|left|right]" max-width="[css-length]"
         on-close="[on-close]" deferred="[deferred]">
  [define the content of the popover]
  <tag type="div" style="modal-footer">
    [footer buttons]
  </tag>
</popover>

Popover structure

Element	Use	Multiples instances	Description
popover	Required	No	Global node of the popover. Defines the popover attributes

Popover attributes

Attribute	Use	Type	Description	Values
id	Optional	String	Popover identifier. The dialog, close and close-cancel actions target it. It is unique among the dialogs, side panels and popovers of the screen
anchor	Required	String	Identifier of the control of the screen the popover is anchored to (a button, a criterion, a grid...)
position	Optional	String	Side of the anchor where the popover opens	bottom (default), top, left, right
max-width	Optional	String	Maximum width of the popover, which takes the width of its content up to it	A CSS length, for instance 30rem, 320px or 30vw. Default 20rem
label	Optional	String	Title of the header	Note: You can use i18n files (locales)
icon	Optional	String	Icon of the header (AngularJS engine)	Note: You can check all iconsets at icons screen
style	Optional	String	Style of the popover (css classes)	CSS classes separated by space (' ')
on-close	Optional	String	Behaviour of the stack after closing the popover with its close button, Esc or a click outside	accept (default), reject- Reject cancels the stack, accept continues executing stack actions
deferred	Optional	Boolean	Load the data of the components of the popover the first time it is opened, not with the screen. See deferred loading	true, false (default)

Opening and closing

The popover opens with a dialog action whose target is the popover, as a dialog does. Usually the control that opens it is its anchor:

<button id="ButPopBottom" label="BUTTON_POPOVER_BOTTOM" icon="arrow-down">
  <button-action type="dialog" target="PopBottom"/>
</button>

It opens on the side of its anchor set in position and follows it when the page scrolls or the window is resized. When the anchor is not on the screen, it opens in the middle of the window.

It closes:

• with a close action (the actions after the dialog action go on) or a close-cancel action (they are cancelled), usually in the buttons of its footer;
• with the close button of its header, with Esc or with a click outside it. A click on its anchor closes it too, and does not open it again. These follow the on-close attribute: accept (default) behaves as close, reject as close-cancel.

A click on the lists and calendars opened from the controls of the popover is not a click outside it.

Footer

Put the buttons of the popover in a child tag with the modal-footer style.

Content

The popover takes the width of its content, up to max-width. A grid inside it needs a width and a height: give it the col-xs-12 style and a height style (height-md, height-lg...), as in the example.

Focus

While the popover is open, the keyboard focus stays inside it: Tab from its last control goes back to the first one and Shift+Tab from the first one goes to the last one. When the popover closes, the focus goes back to the control that opened it.

Example

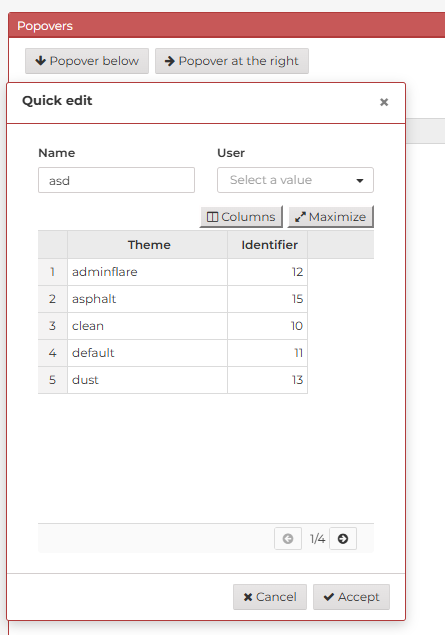

A deferred popover below its button with two criteria, a grid and a footer with Cancel and Accept (the select and the grid load their data the first time it opens), and a deferred popover at the right of its button, up to 30rem wide, which rejects the stack when it is dismissed:

<tag source="center">
  <window style="expand" label="SCREEN_TITLE_POPOVER" expandible="vertical">
    <tag type="div" style="panel-body">
      <button id="ButPopBottom" label="BUTTON_POPOVER_BOTTOM" icon="arrow-down">
        <button-action type="dialog" target="PopBottom"/>
      </button>
      <button id="ButPopRight" label="BUTTON_POPOVER_RIGHT" icon="arrow-right">
        <button-action type="dialog" target="PopRight"/>
      </button>
    </tag>
    <tag type="div" style="panel-body">
      <criteria id="CrtPopResult" label="PARAMETER_POPOVER_RESULT" component="text" readonly="true"
                style="col-xs-12 col-sm-6"/>
    </tag>
  </window>

  <popover id="PopBottom" label="POPOVER_TITLE_BOTTOM" anchor="ButPopBottom" max-width="40rem" deferred="true">
    <tag type="div" style="panel-body">
      <criteria id="CrtPopName" label="PARAMETER_NAME" component="text" style="col-xs-12 col-sm-6"/>
      <criteria id="CrtPopUser" label="PARAMETER_USER" component="select" initial-load="query"
                target-action="TestComponentInitialLoadQuery" optional="true" style="col-xs-12 col-sm-6"/>
      <grid id="GrdPopThemes" style="col-xs-12 height-lg" initial-load="query" server-action="data"
            target-action="ThemeStyleTst" max="5">
        <column label="PARAMETER_THEME" name="name" align="left" charlength="20"/>
        <column label="PARAMETER_POPOVER_THEME_ID" name="id" align="right" charlength="10"/>
      </grid>
    </tag>
    <tag type="div" style="modal-footer">
      <button id="ButPopBottomCancel" label="BUTTON_CANCEL" icon="times">
        <button-action type="close-cancel" target="PopBottom"/>
      </button>
      <button id="ButPopBottomAccept" label="BUTTON_ACCEPT" icon="check">
        <button-action type="close" target="PopBottom"/>
        <button-action type="value" target="CrtPopResult" value="accepted"/>
      </button>
    </tag>
  </popover>

  <popover id="PopRight" label="POPOVER_TITLE_RIGHT" anchor="ButPopRight" position="right" max-width="30rem"
           on-close="reject" deferred="true">
    <tag type="div" style="panel-body">
      <criteria id="CrtPopNotes" label="PARAMETER_DESCRIPTION" component="textarea" style="col-xs-12"/>
    </tag>
    <tag type="div" style="modal-footer">
      <button id="ButPopRightClose" label="BUTTON_CLOSE" icon="times">
        <button-action type="close" target="PopRight"/>
      </button>
    </tag>
  </popover>
</tag>

With the builder module, PopoverBuilder builds a <popover>:

new PopoverBuilder()
  .setAnchor("ButPopRight")
  .setPosition(PopoverPosition.RIGHT)
  .setMaxWidth("30rem")
  .setOnClose(OnClose.REJECT)
  .setDeferred(true)
  .setId("PopRight")
  .setLabel("POPOVER_TITLE_RIGHT");
